Yealink IP Τηλεφωνικές Συσκευές
Η Yealink είναι μια από τις εταιρίες με τις μεγαλύτερες πωλήσεις IP συσκευών παγκοσμίως. Διαθέτει μια ευρεία γκάμα μοντέλων τις οποίες χωρίζει σε 3 σειρές: την T3 σειρά με τα πιο οικονομικά, entry-level μοντέλα, την T4 σειρά με τα μεσαία και πιο user friendly μοντέλα, και την Τ5 σειρά με τα κορυφαία από άποψη αισθητικής και δυνατοτήτων μοντέλα.
Οι Yealink IP συσκευές είναι συμβατές με κάθε τηλεφωνικό κέντρο που υποστηρίζει SIP και διακρίνονται για τον όμορφη σχεδίαση, τα τεχνολογικά χαρακτηριστικά και την αξιοπιστία τους, δίνοντας στην επιχείρηση ευελιξία στην επιλογή του κατάλληλου μοντέλου για κάθε θέση εργασίας.
Τα μοντέλα και τα βασικά τεχνικά χαρακτηριστικά τους είναι τα εξής:

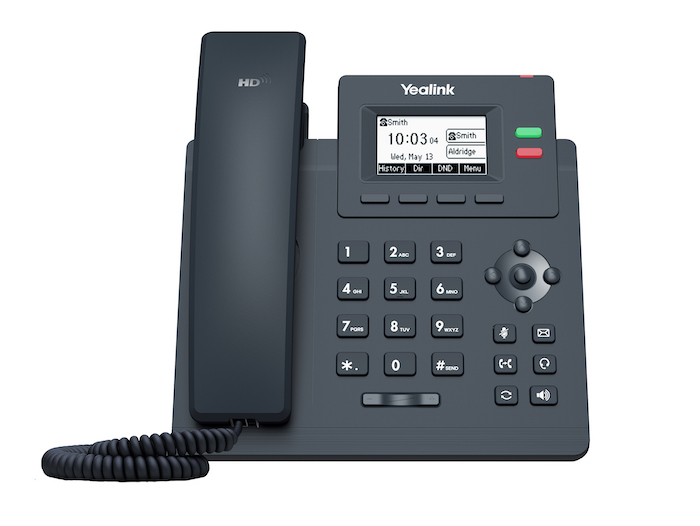

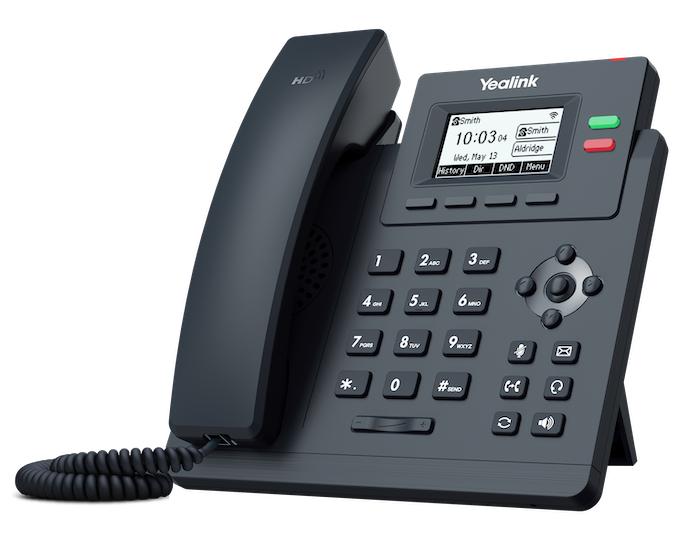

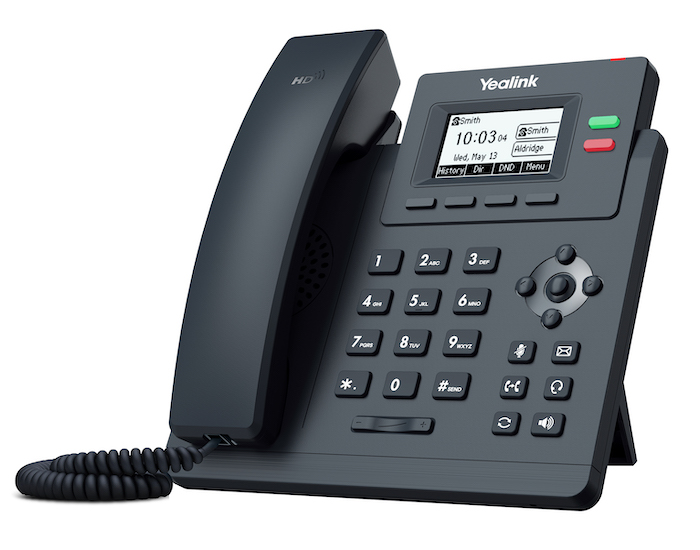

Yealink T31P – T31G – T31W
Datasheet- 2.3” 132×64-pixel graphical LCD with backlight
- 2 line keys with LED
- 6 features keys
- Full-duplex hands-free speakerphone with AEC
- Local 5-way conferencing
- RJ9 headset port with EHS support
- T31G: Dual-port Gigabit Ethernet switch / PoE, class 2
- T31P: Dual-port 10/100 Mbit Ethernet switch / PoE, class 1
- T31W: Dual-port 10/100 Mbit Ethernet switch / PoE, class 1 / Power Adapter included
- T31W: Built-in dual band 2.4G/5G Wi-Fi

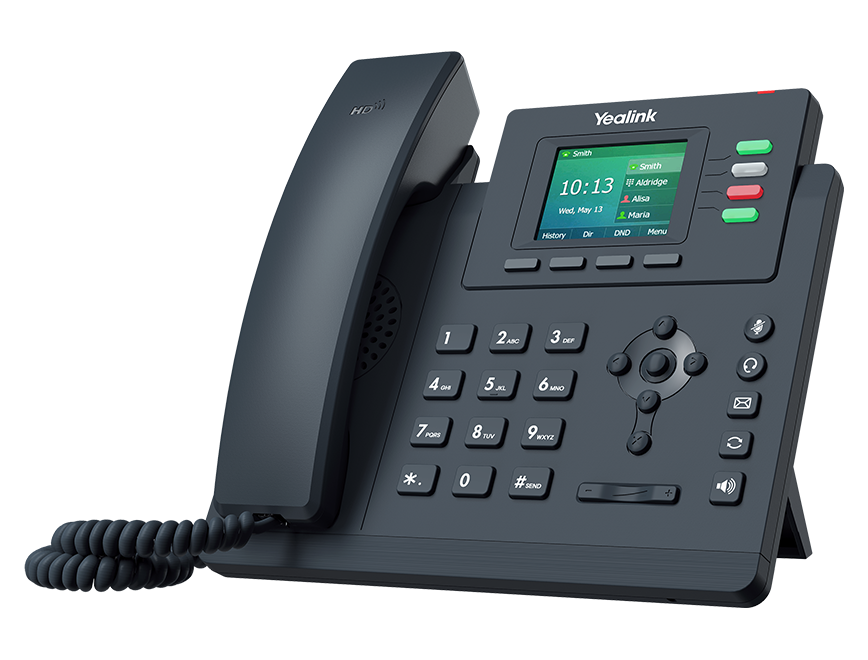

Yealink T33P – T33G
Datasheet- 2.4” 320×240-pixel color display with backlight
- 4 line keys with LED – can be programmed up to 12 paperless DSS keys (4-page view)
- 5 features keys
- Full-duplex hands-free speakerphone with AEC
- Local 5-way conferencing
- RJ9 headset port with EHS support
- T33G: Dual-port Gigabit Ethernet switch / PoE, class 2 / Power Adapter included
- T33P: Dual-port 10/100 Mbit Ethernet switch / PoE, class 1 / Power Adapter included

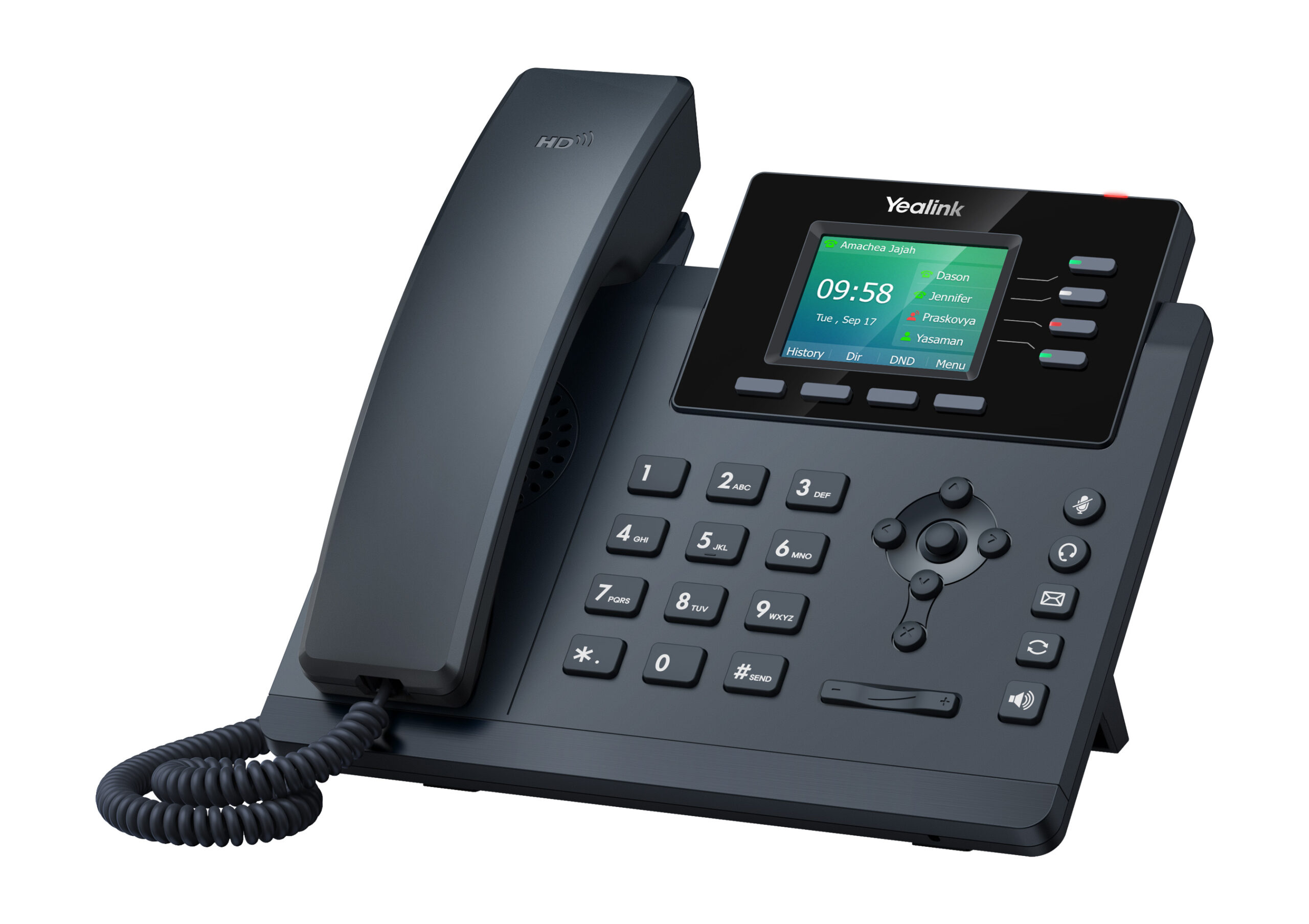

Yealink T34W
Datasheet- 2.4” 320×240-pixel color display with backlight
- 4 line keys with LED – can be programmed up to 12 paperless DSS keys (4-page view)
- 5 features keys
- Full-duplex hands-free speakerphone with AEC
- Local 5-way conferencing
- RJ9 headset port with EHS support
- Dual-port Gigabit Ethernet switch / PoE, class 2 / Power Adapter included
- Built-in dual band 2.4G/5G Wi-Fi
- USB 2.0 port for wired USB headsets / Bluetooth headsets

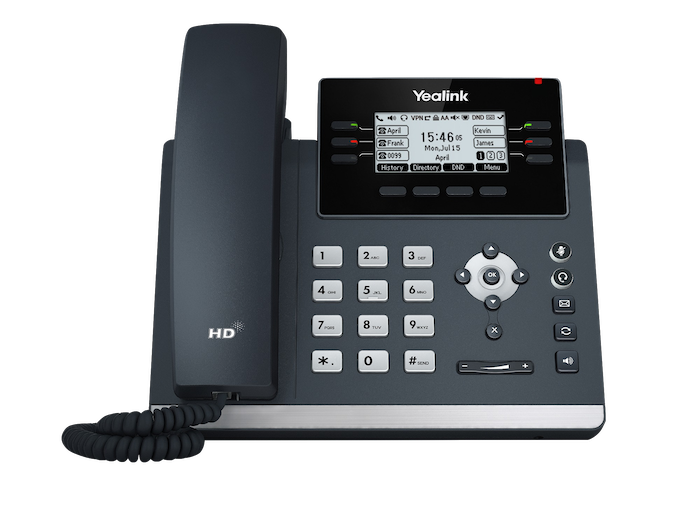

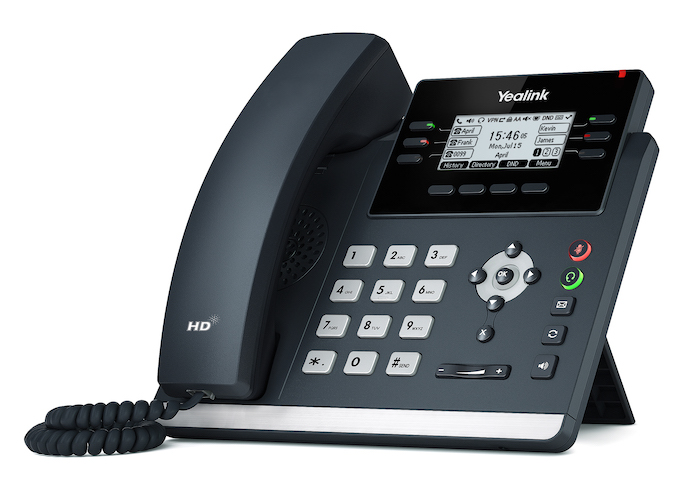

Yealink T42U
Datasheet- 2.7″ 192×64-pixel graphical LCD with backlight
- 6 line keys with LED – can be programmed up to 15 paperless DSS keys (3-page view)
- 5 features keys
- Full-duplex hands-free speakerphone with AEC
- Local 5-way conferencing
- Dual USB ports for adding headset or WiFi adapter (WF40/WF50) or BT adapter (BT41)
- RJ9 headset port with EHS support
- Dual-port Gigabit Ethernet switch / PoE, class 2

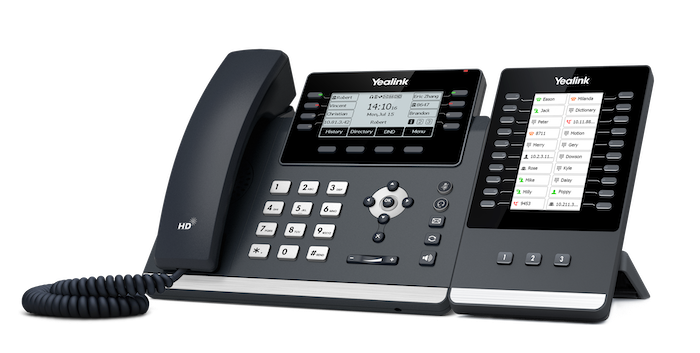

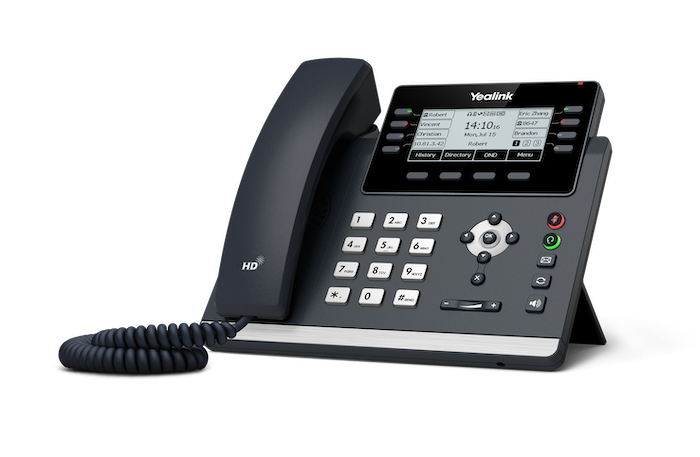

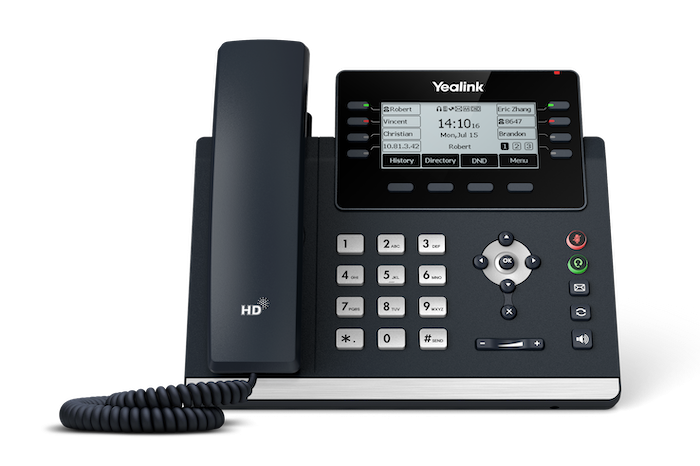

Yealink T43U
Datasheet- 3.7″ 360×160-pixel graphical LCD with backlight
- 8 line keys with LED – can be programmed up to 21 paperless DSS keys (3-page view)
- 5 features keys & 4 context-sensitive “soft” keys
- Full-duplex hands-free speakerphone with AEC
- Local 5-way conferencing
- Supports max.3 EXP43 expansion modules
- Dual USB ports for adding headset or WiFi adapter (WF40/WF50) or BT adapter (BT41)
- RJ9 headset port with EHS support
- Dual-port Gigabit Ethernet switch / PoE, class 2

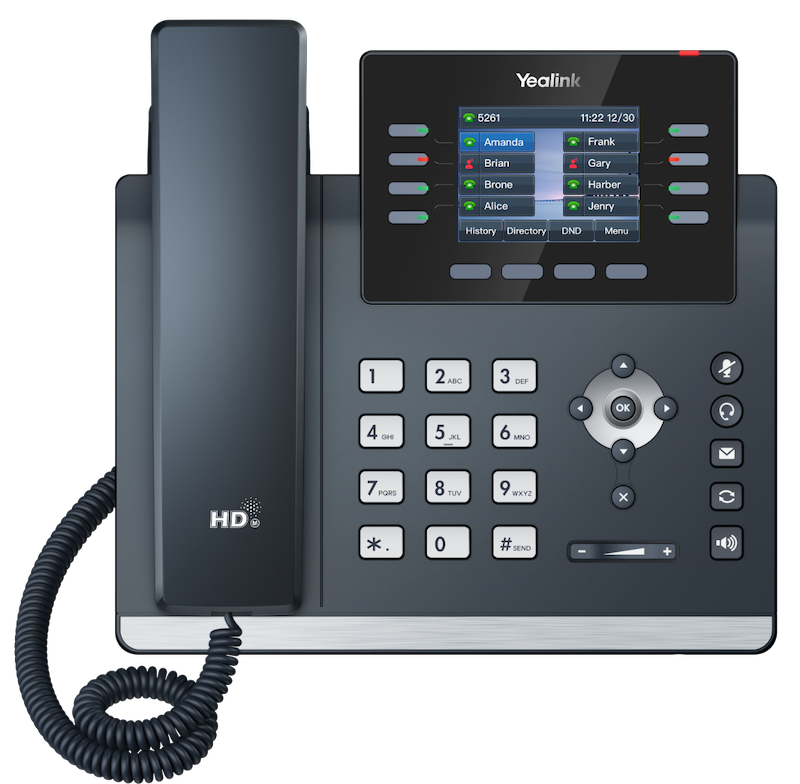

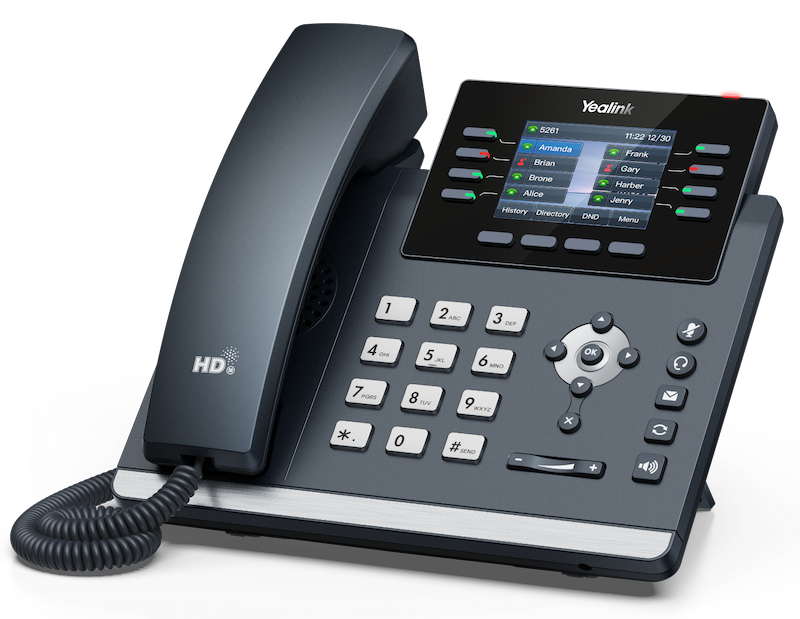

Yealink T44U – T44W
Datasheet- 2.8” 320×240-pixel color LCD with backlight
- 8 line keys with LED – can be programmed up to 21 paperless DSS keys (3-page view)
- 5 features keys & 4 context-sensitive “soft” keys
- Full-duplex hands-free speakerphone with AEC
- Local 5-way conferencing
- Supports max.3 EXP43 expansion modules
- Dual USB ports for adding headset or WiFi adapter (WF40/WF50) or BT adapter (BT41)
- RJ9 headset port with EHS support
- Dual-port Gigabit Ethernet switch
- T44U: PoE, class 2 / T44W: PoE, class 3
- T44W: Built-in dual band 2.4G/5G Wi-Fi & Built-in Bluetooth 4.2

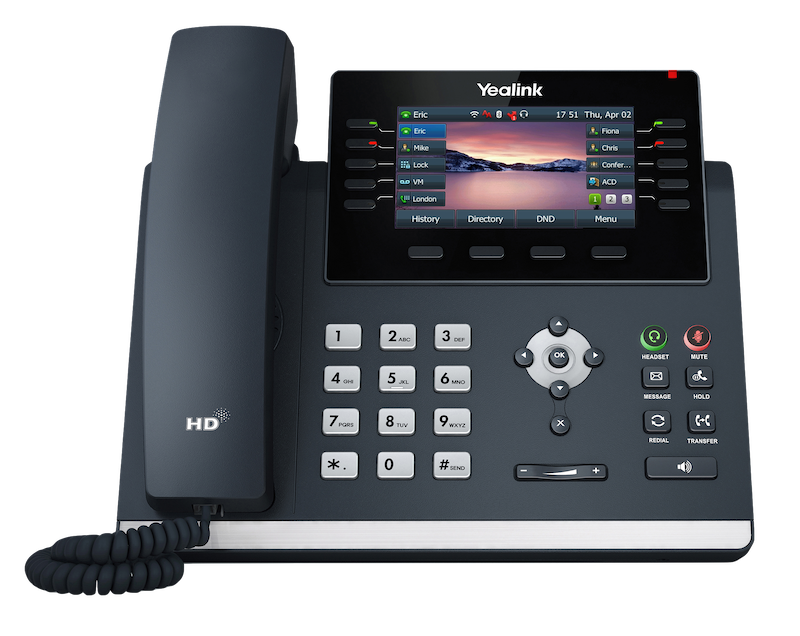

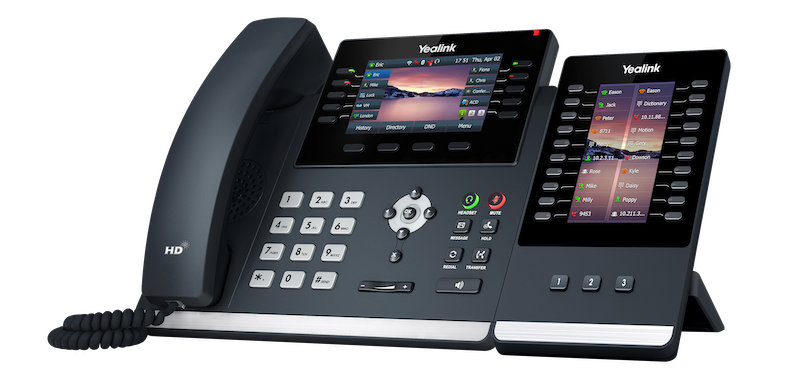

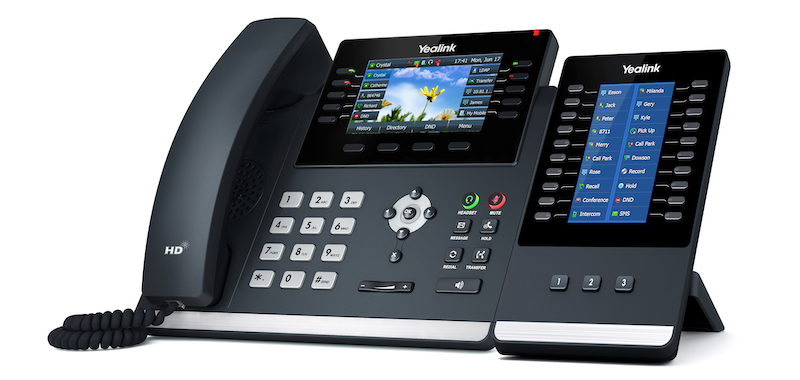

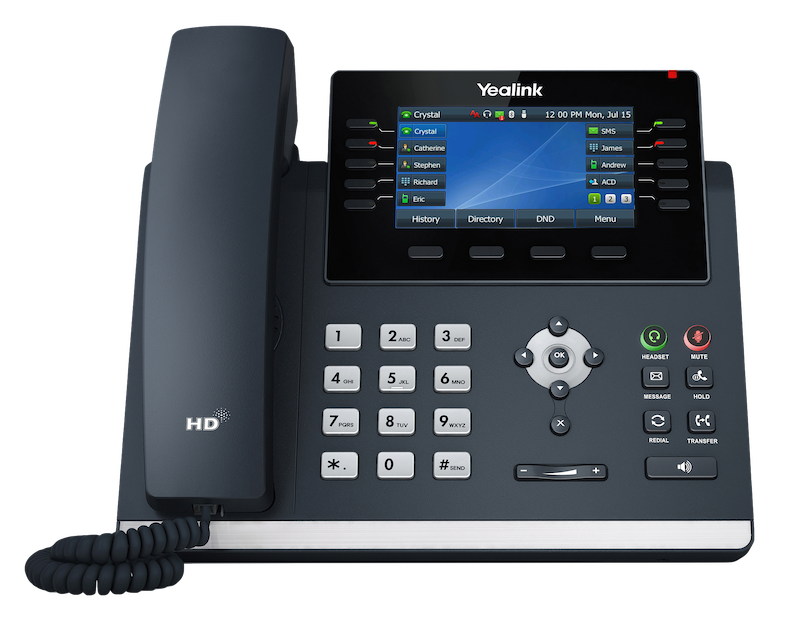

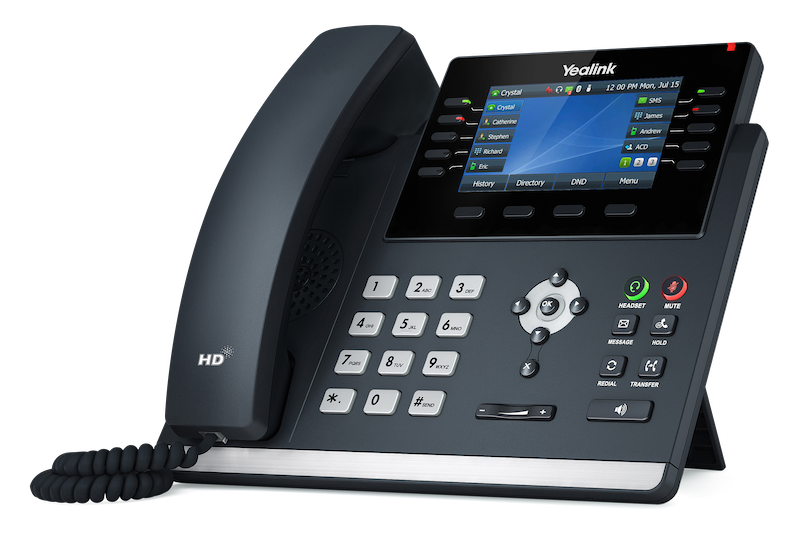

Yealink T46U
Datasheet- 4.3″ 480×272-pixel color display with backlight
- 10 line keys with LED – can be programmed up to 27 paperless DSS keys (3-page view)
- 7 features keys & 4 context-sensitive “soft” keys
- Full-duplex hands-free speakerphone with AEC
- Local 10-way conferencing
- Supports max.3 EXP43 expansion modules
- Dual USB ports for adding headset or WiFi adapter (WF40/WF50) or BT adapter (BT41)
- RJ9 headset port with EHS support
- Dual-port Gigabit Ethernet switch / PoE, class 3

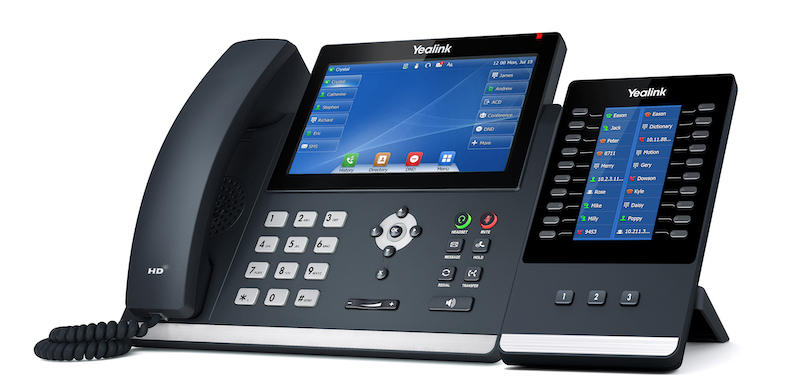

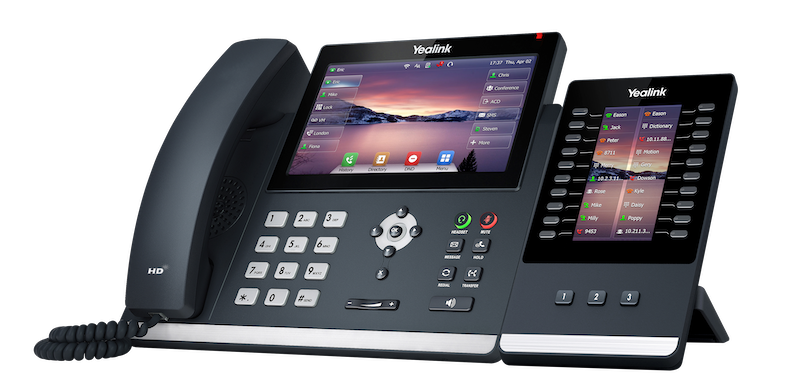

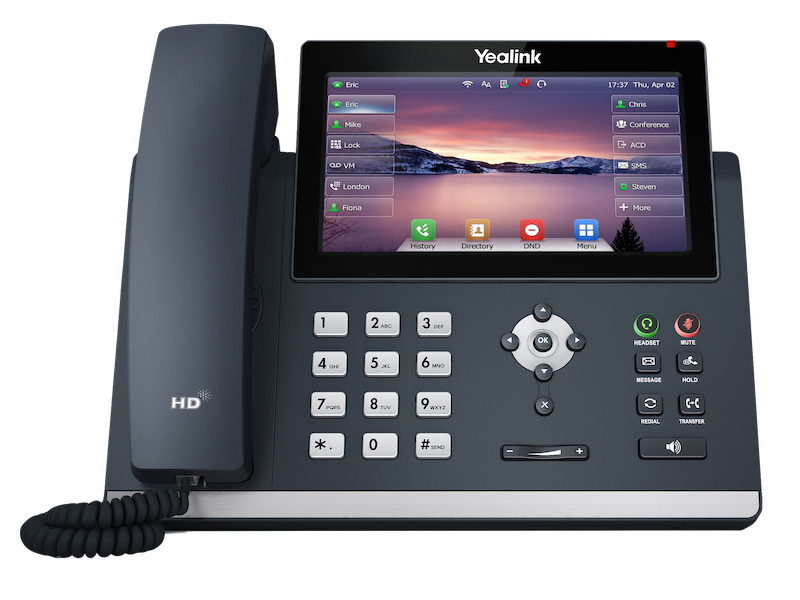

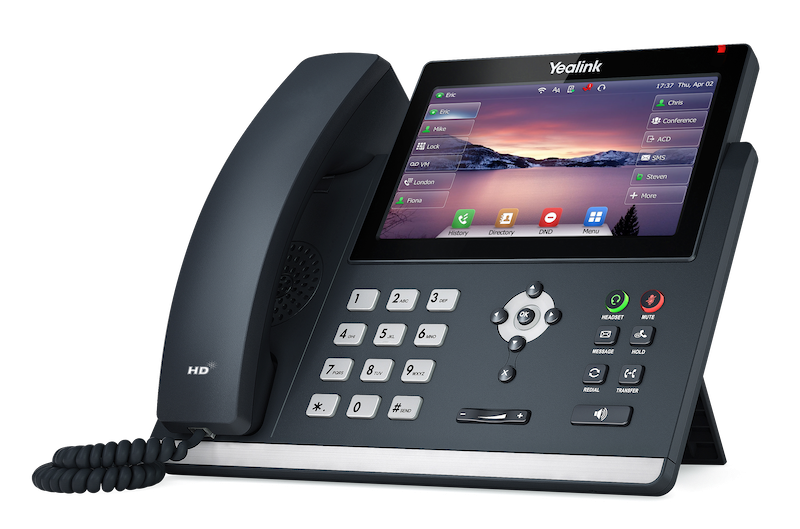

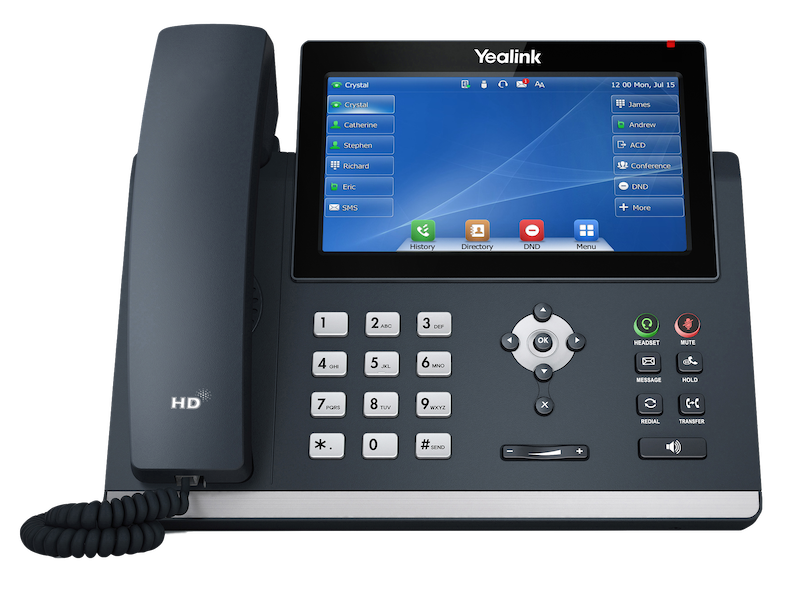

Yealink T48U
Datasheet- 7″ 800 x 480-pixel color touch screen with backlight
- 29 one-touch DSS keys
- 7 features keys
- Full-duplex hands-free speakerphone with AEC
- Local 10-way conferencing
- Supports max.3 EXP43 expansion modules
- Dual USB ports for adding headset or WiFi adapter (WF40/WF50) or BT adapter (BT41)
- RJ9 headset port with EHS support
- Dual-port Gigabit Ethernet switch / PoE, class 3

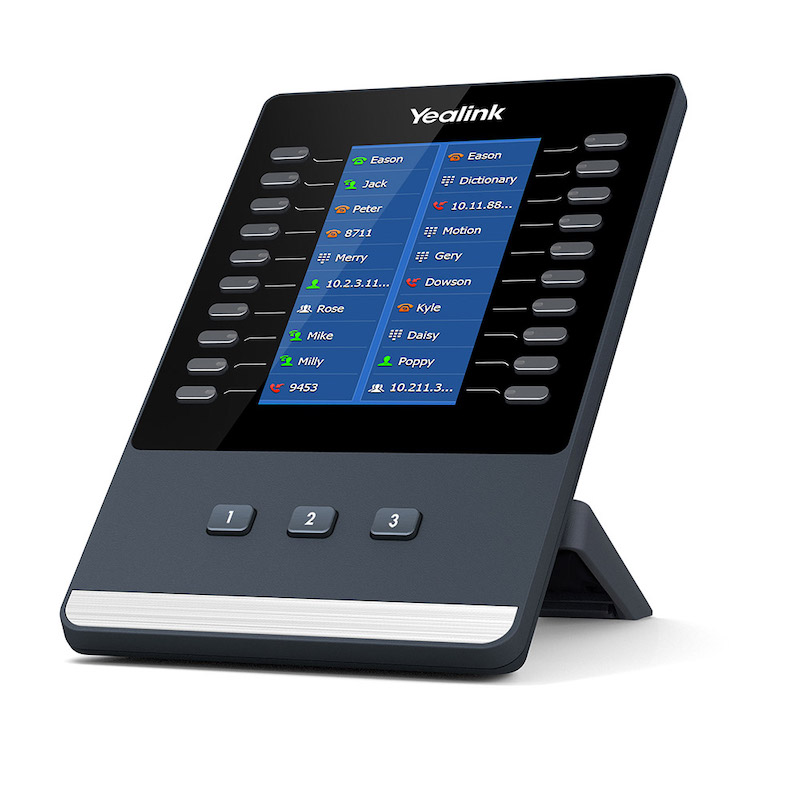

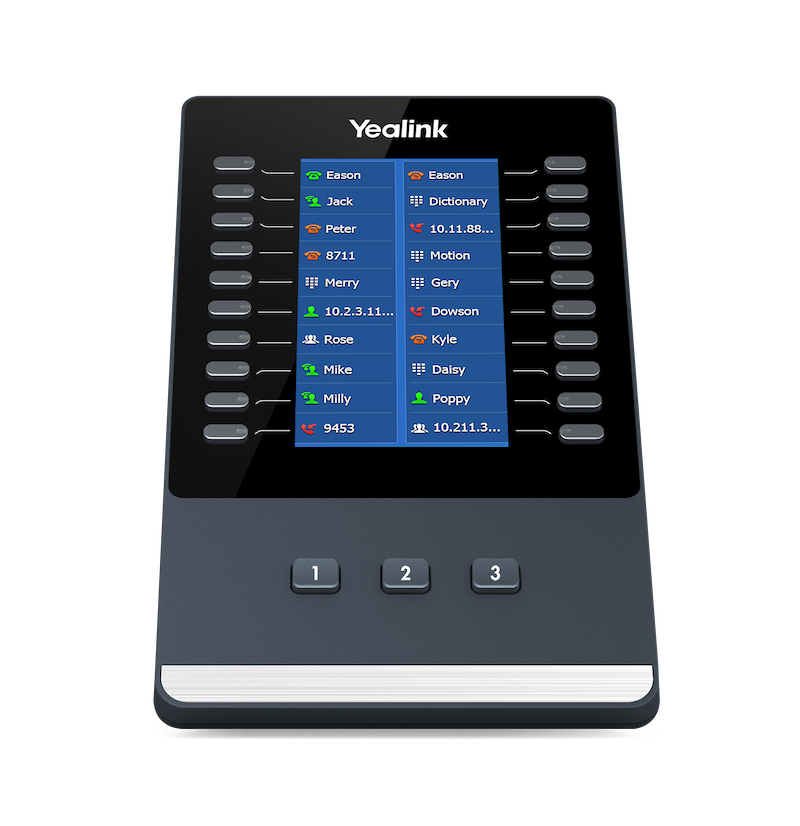

Yealink EXP43 Expansion Key module
Datasheet- Up to 3 EXP43 can be attached on Yealink T43U / T46U / T48U IP phones
- For support of 2 or 3 Modules, an external Yealink power adapter (5V/2A) is required
- 3″ 272 x 480-pixel color screen
- Color icons for rich visual experience
- 20 physical keys on each page with dual-color LEDs / 3 independent control keys with illuminated LED for fast switching pages / 60 buttons per module
- Programmable for shared line, BLF List, call park, conference, forward, group pickup, etc.
- USB port for adding headset or WiFi adapter or BT adapter

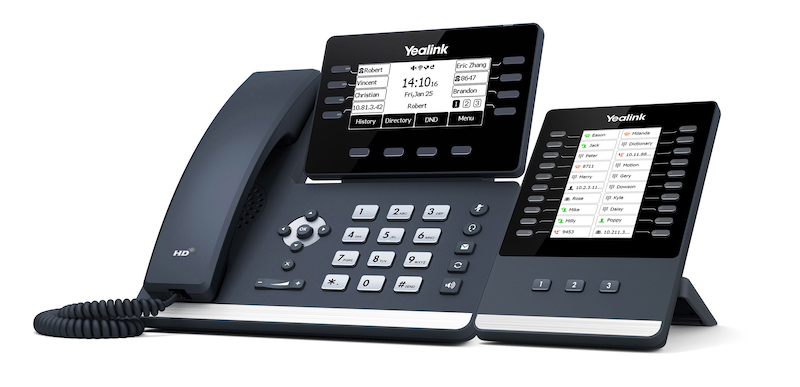

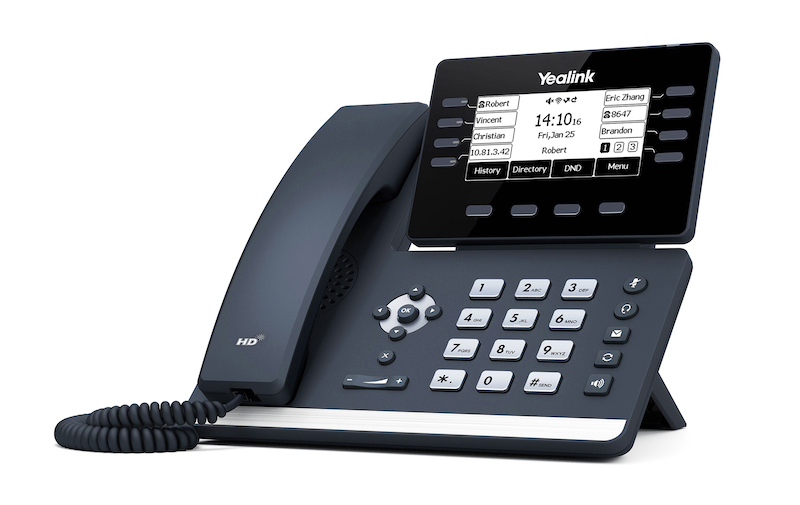

Yealink T53W
Datasheet- 3.7″ 360×160-pixel graphical adjustable LCD with backlight
- 8 line keys with LED – can be programmed up to 21 paperless DSS keys (3-page view)
- 5 features keys & 4 context-sensitive “soft” keys
- Full-duplex hands-free speakerphone with AEC
- Local 5-way conferencing
- Supports max.3 EXP50 expansion modules
- Built-in Bluetooth 4.2 – Simultaneous connection of 1 headset and 1 mobile phone
- Built-in dual band 2.4G/5G Wi-Fi
- RJ9 headset port with EHS support
- USB port for adding headset or EXP50 module
- Dual-port Gigabit Ethernet switch / PoE, class 2
- Supports USB/Bluetooth connectivity to Yealink CP900 / CP700 speakerphone.
- Supports Corded-Cordless Phone via DECT Dongle DD10K for max. 4 DECT handsets (4 concurrent calls) or Yealink CP935W Conference phone.

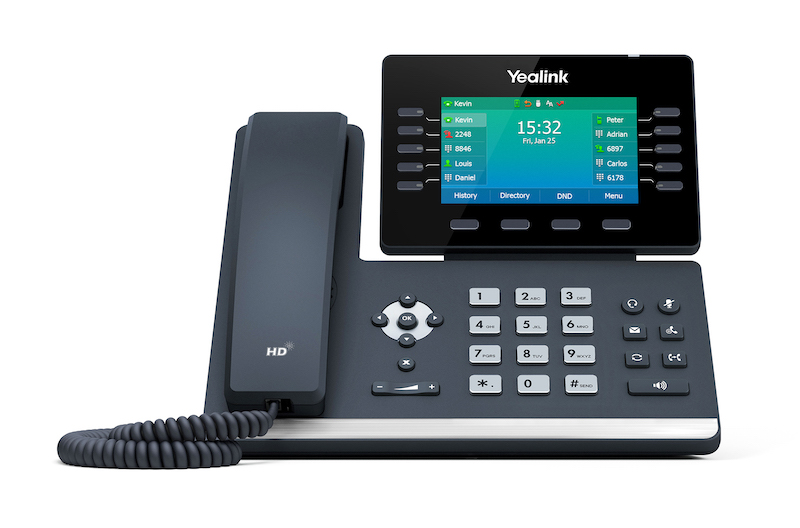

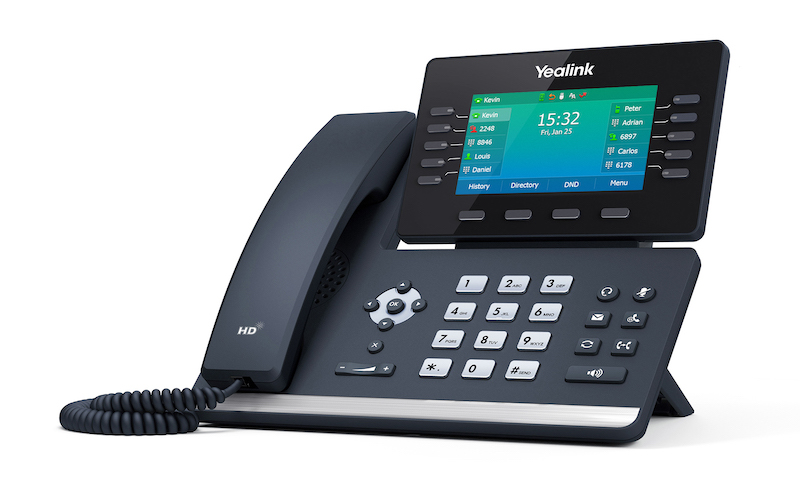

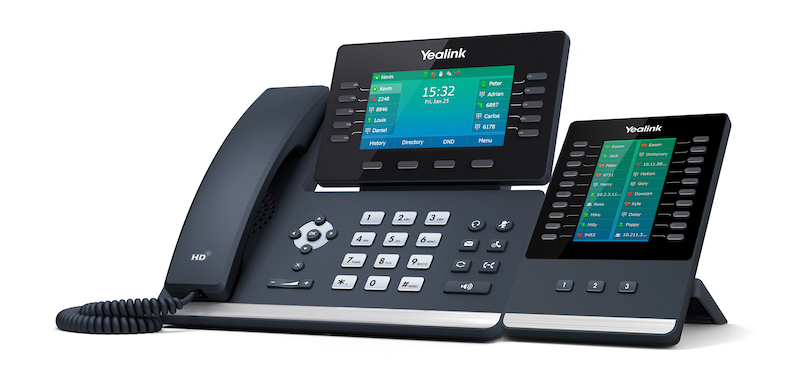

Yealink T54W
Datasheet- 4.3″ 480×272-pixel adjustable color display with backlight
- 10 line keys with LED – can be programmed up to 27 paperless DSS keys (3-page view)
- 7 features keys & 4 context-sensitive “soft” keys
- Full-duplex hands-free speakerphone with AEC
- Local 10-way conferencing
- Supports max.3 EXP50 expansion modules
- Built-in Bluetooth 4.2 – Simultaneous connection of 1 headset and 1 mobile phone
- Built-in dual band 2.4G/5G Wi-Fi
- RJ9 headset port with EHS support
- USB port for adding headset or EXP50 module
- Dual-port Gigabit Ethernet switch / PoE, class 3
- Supports USB/Bluetooth connectivity to Yealink CP900 / CP700 speakerphone.
- Supports Corded-Cordless Phone via DECT Dongle DD10K for max. 4 DECT handsets (4 concurrent calls) or Yealink CP935W Conference phone.

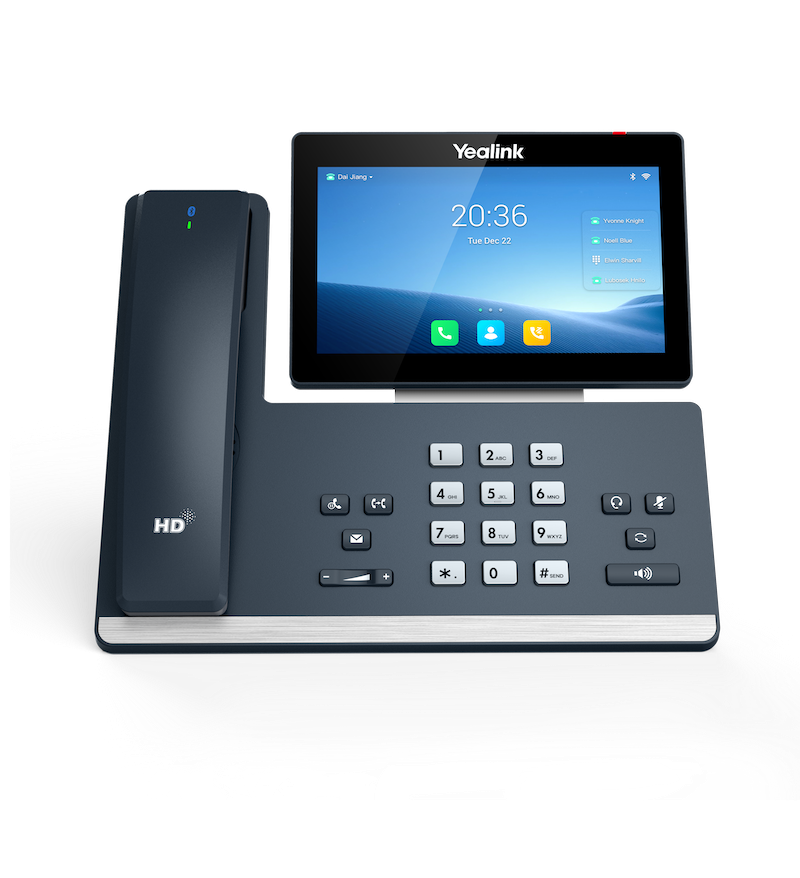

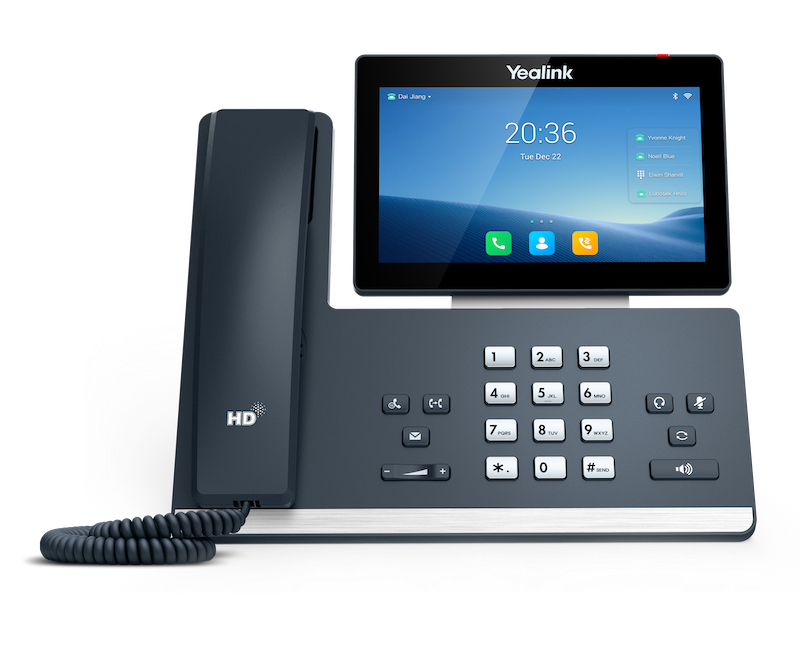

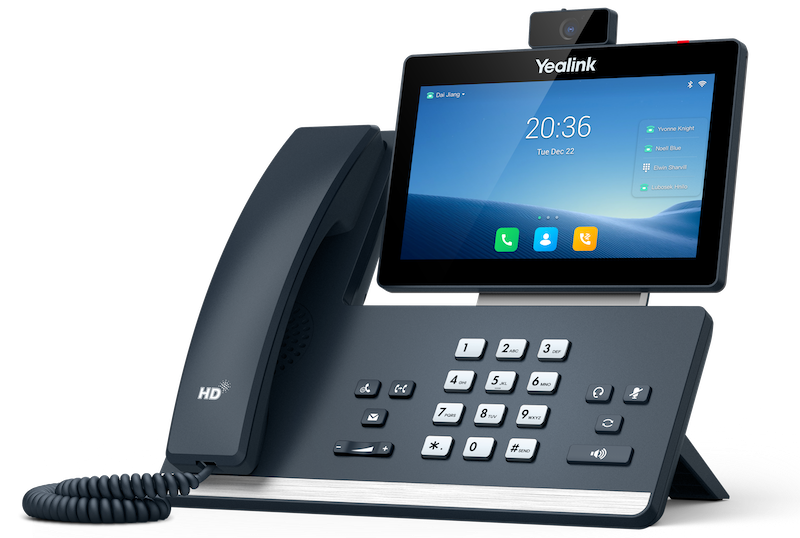

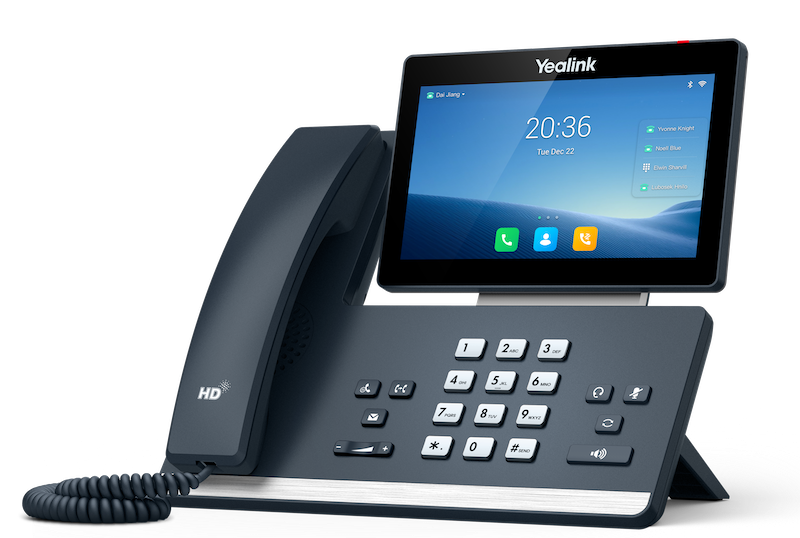

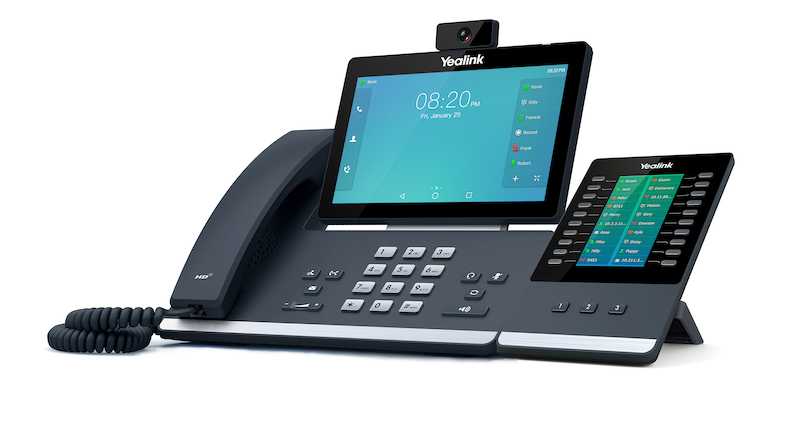

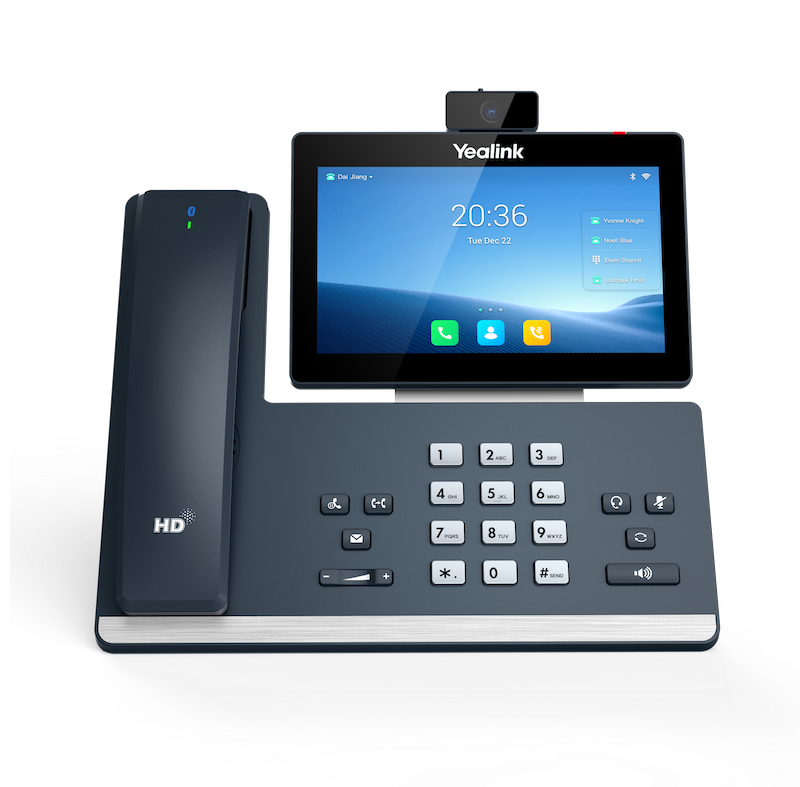

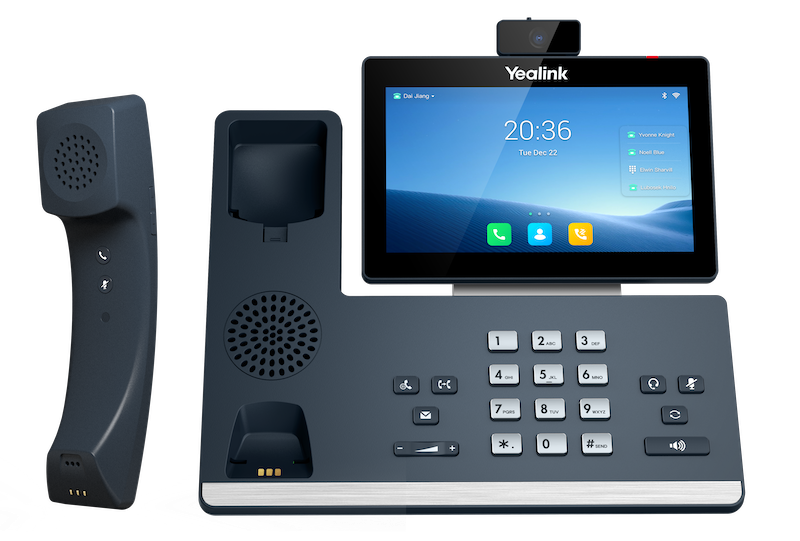

Yealink T58W – T58W PRO
Datasheet- T58W Pro is equipped with Bluetooth handset BTH58
- Runs Android 9.0
- 7″ (1024 x 600) capacitive adjustable touch screen
- 27 one-touch DSS keys & 7 features keys
- Full-duplex hands-free speakerphone with AEC
- Local 10-way conferencing
- Supports max.3 EXP50 expansion modules
- Built-in Bluetooth 4.2 – Simultaneous connection of 1 headset and 1 mobile phone
- Built-in dual band 2.4G/5G Wi-Fi
- RJ9 headset port with EHS support
- Dual-port Gigabit Ethernet switch / PoE, class 3
- Supports 720p30 HD video with optional CAM50 USB camera (75° FoV, 5 mega-pixel)
- Supports optional BTH58 Bluetooth handset.
- Supports DoorPhone Features (Preview etc)
- Supports USB/Bluetooth connectivity to Yealink CP900 / CP700 speakerphone.
- Supports Cordless Phone via DECT Dongle DD10K or Yealink CP935W Conference phone.

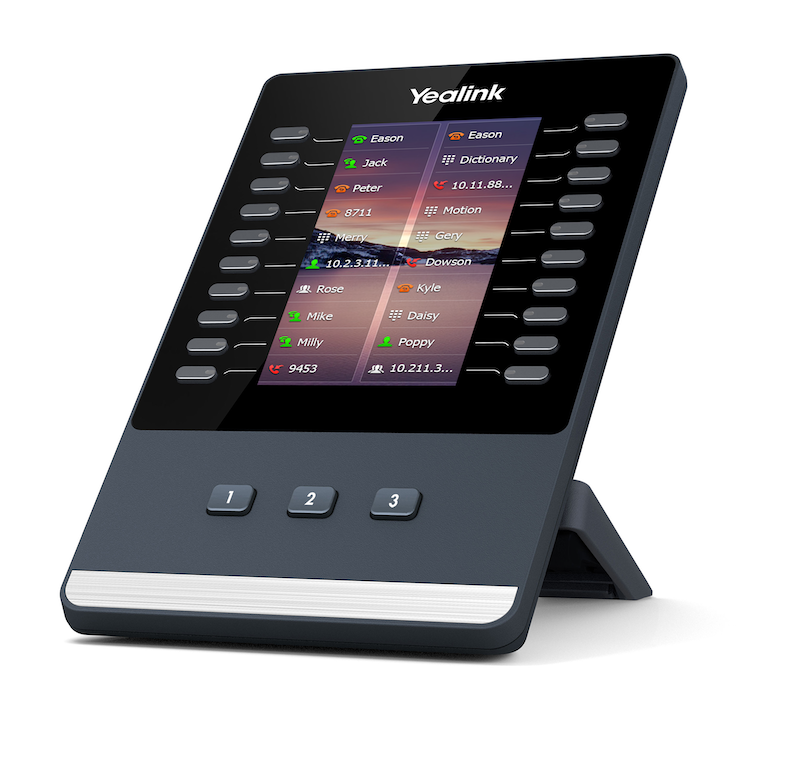

Yealink EXP50 Expansion Key module
Datasheet- Up to 3 EXP50 can be attached on Yealink T53U/W / T54U / T58A/T58W IP phones
- For support of 2 or 3 Modules, an external Yealink power adapter (5V/2A) is required
- 3″ 272 x 480-pixel color screen
- Color icons for rich visual experience
- 20 physical keys on each page with dual-color LEDs / 3 independent control keys with illuminated LED for fast switching pages / 60 buttons per module
- Programmable for shared line, BLF List, call park, conference, forward, group pickup etc.
- USB port for adding headset or WiFi adapter or BT adapter
Yealink VP59
Datasheet- Runs Android 7.1
- 8″ (1280 x 800) capacitive adjustable touch screen – Onscreen keyboard
- 27 one-touch DSS keys & 8 features keys
- Full-duplex hands-free speakerphone with AEC
- 2 mega-pixel camera (84° FoV) with privacy shutter
- 1080p30 Full HD video – Up to 3-party video conferencing
- 10-way audio/video mixed conferencing (up to 2 video calls)
- Standard HDMI output for monitor connection
- Built-in Bluetooth 4.2 – Simultaneous connection of 1 headset and 1 mobile phone
- Built-in dual band 2.4G/5G Wi-Fi
- RJ9 headset port with EHS support
- Dual-port Gigabit Ethernet switch / PoE, class 3
- Supports DoorPhone Features (Preview, etc)
- Supports USB/Bluetooth connectivity to Yealink CP900 / CP700 speakerphone.
- Supports Cordless Phone via DECT Dongle DD10K or Yealink CP935W Conference phone.
